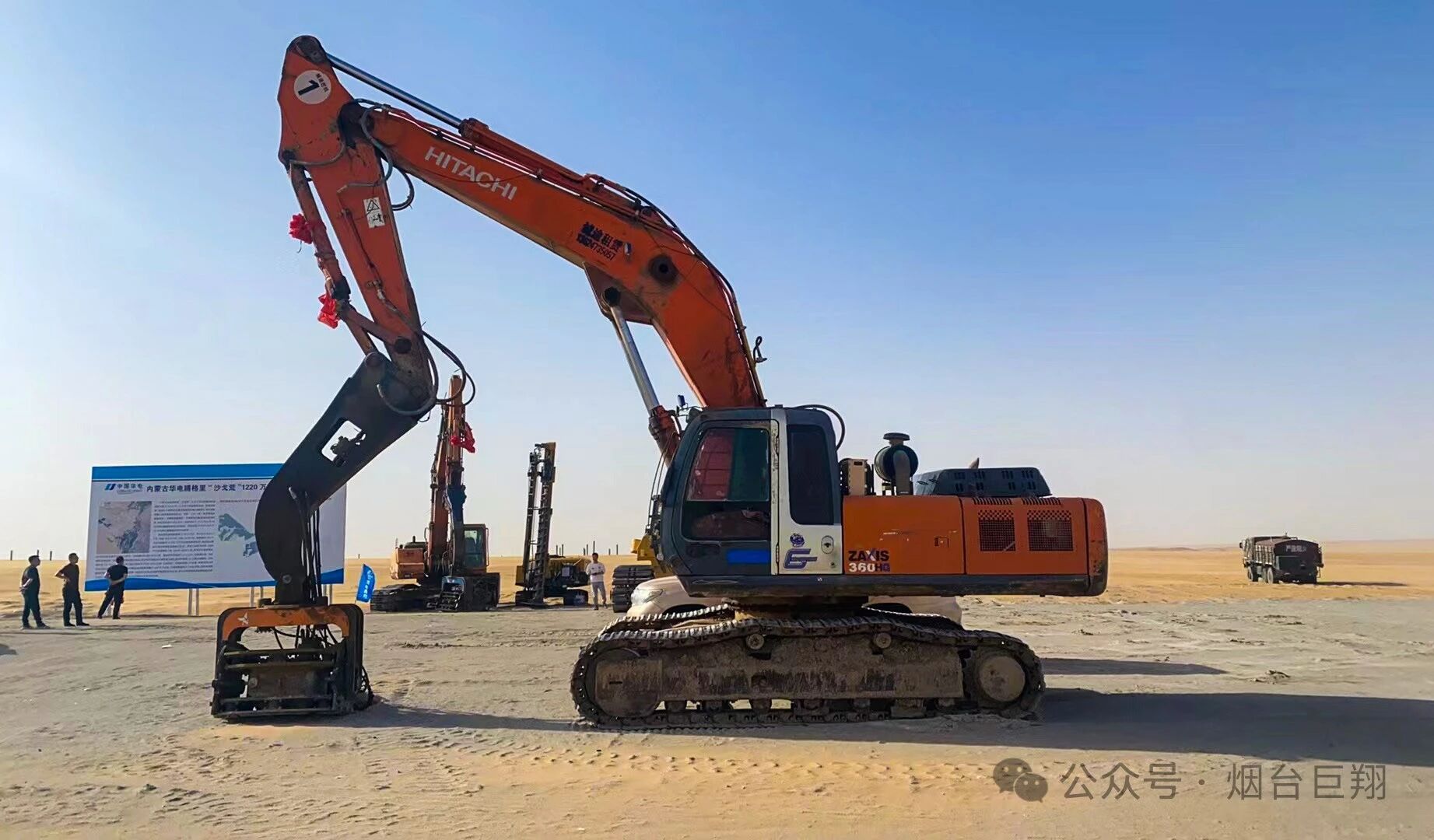

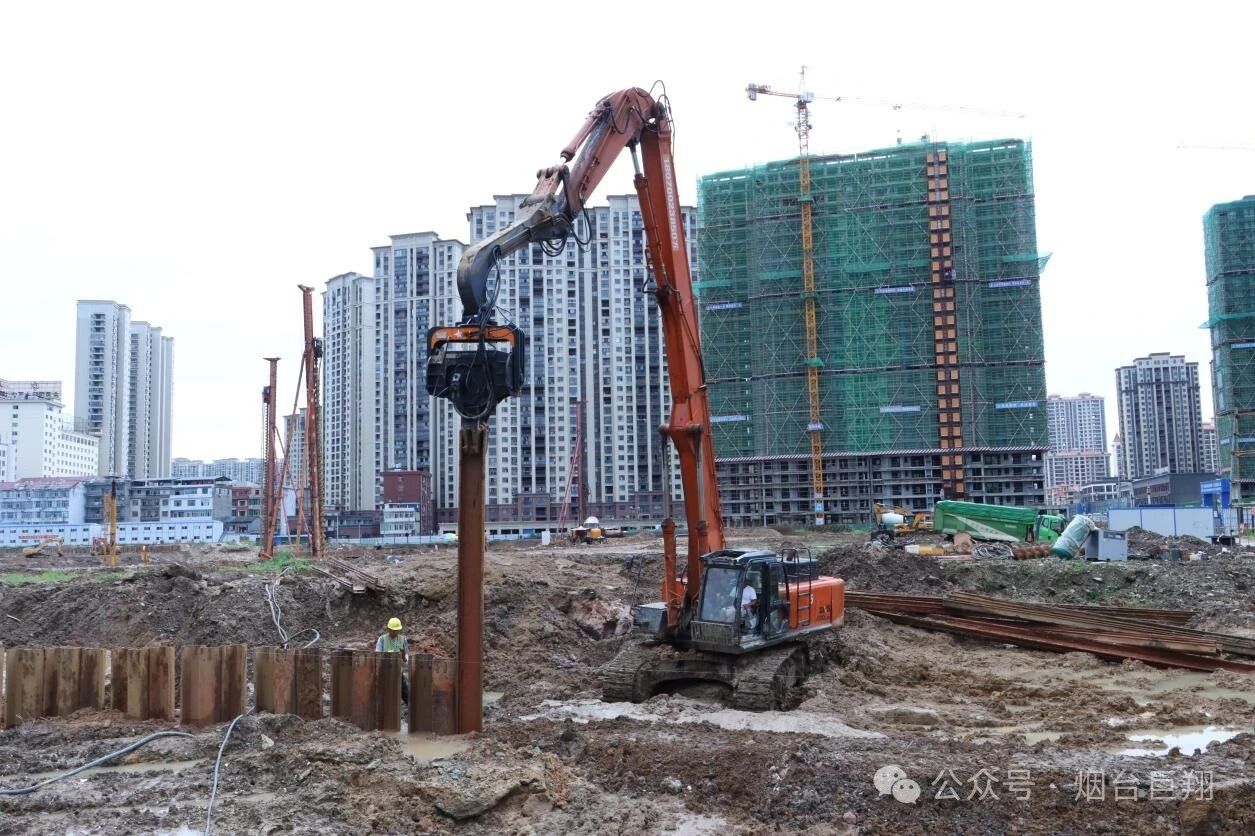

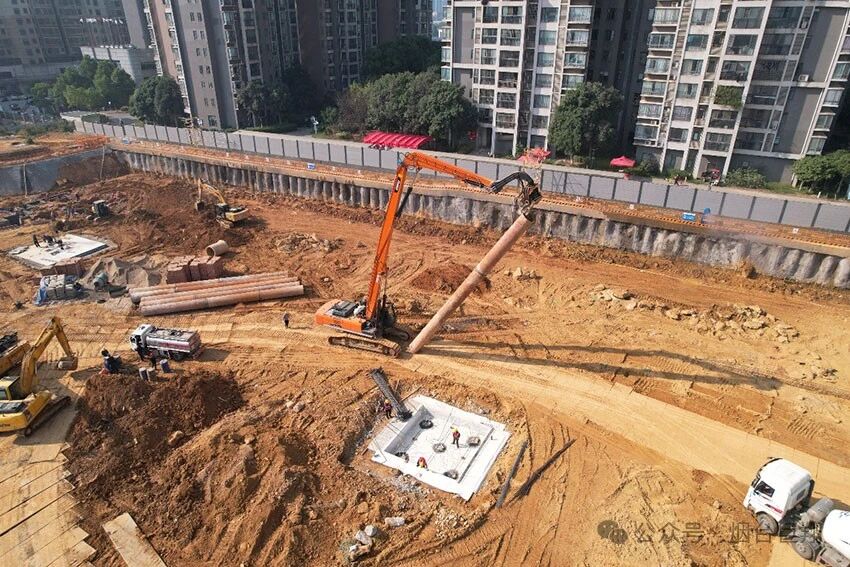

Excavator pile drivers are mainly used for pile driving, including steel sheet piles, steel pipe piles, precast concrete piles, wooden piles, and photovoltaic piles driven underwater. They are particularly suitable for short to medium pile projects such as municipal works, bridges, cofferdams, and building foundations. As a type of auxiliary machinery in construction, the nature of excavator pile drivers dictates the importance of standardized operation. Therefore, to ensure safe construction, Juxiang Machinery summarizes several operating procedures for you today:

1. Personnel Requirements

Operators of excavator piling machines must be familiar with the machine’s structure, performance, operating procedures, and safety precautions. Only after passing an examination and obtaining a certificate can they operate the machine independently. This is to ensure timely handling of unexpected situations during construction and to reduce or avoid mechanical failures or project delays caused by mechanical problems.

When the excavator piling machine is in operation, all personnel should exchange operating signals in advance. Before the excavator piling machine begins operation, all personnel not involved in the work must stay away from the site. Furthermore, excavator piling machine operators must be familiar with the construction process before starting work to ensure a fast and efficient construction process.

2. Suitable Environment

Operation should be stopped in severe weather. When the wind force is greater than level 7, the pile driver should be stopped facing the wind, the pile hammer should be lowered, and windproof cables should be added. If necessary, the pile frame should be lowered. The pile driver should have lightning protection measures, and personnel should stay away from the pile driver during lightning.

3. Operating Procedures

The excavator pile driver should use pile caps and pads that are compatible with the pile type, pile frame, and pile hammer. Any damage should be repaired or replaced promptly. During use, the pipe joints and oil pump fastening bolts that are subject to pressure vibration should be checked to ensure there are no oil or air leaks. When the excavator pile driver is moving, it must be directed by a designated person, and care should be taken to avoid dangerous areas such as high-voltage lines and puddles to prevent mechanical damage due to accidents.

4. Timely Maintenance

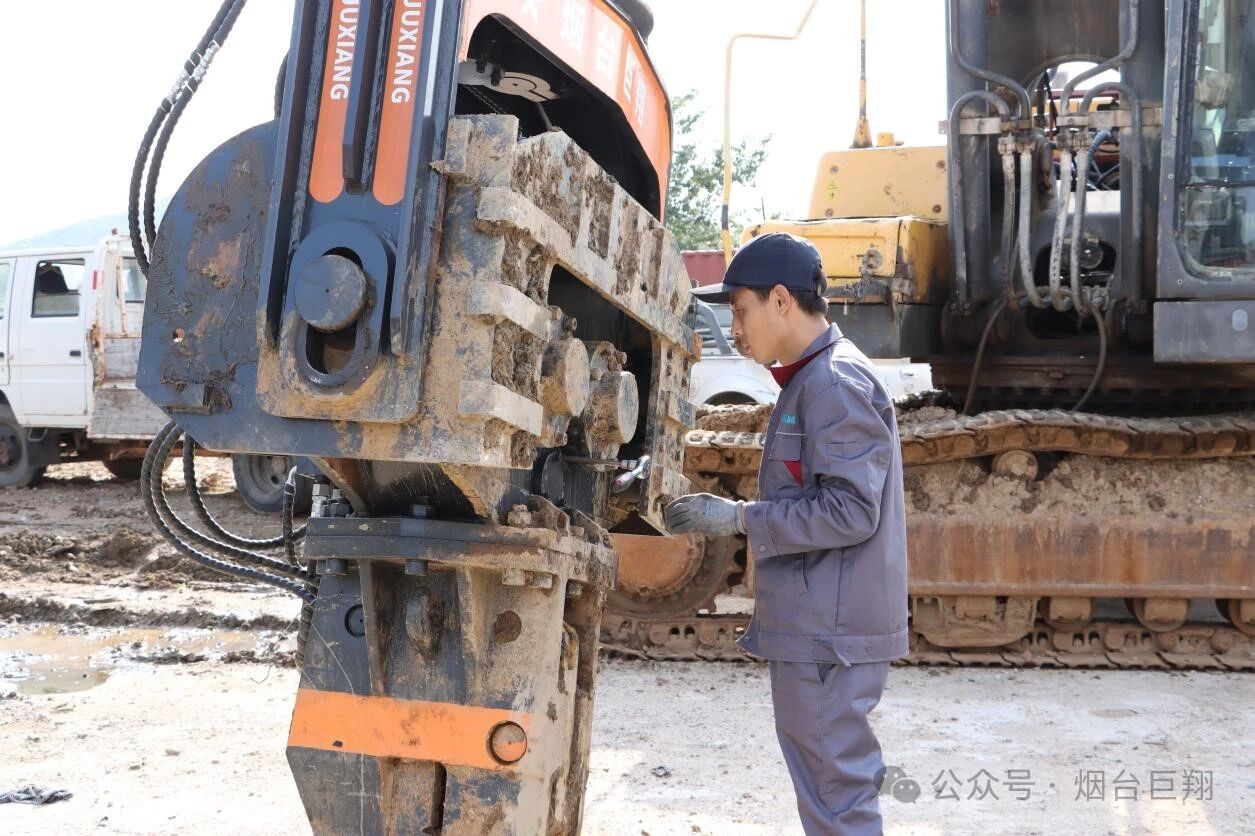

Wearing and tear is inevitable after the excavator/pile driver has been used for construction. However, to ensure its normal performance and extend its service life, post-use maintenance is extremely important.

Product characteristics of excavator pile drivers:

1. High Efficiency

The speed of vibratory pile driving and extraction is generally 4-7 meters/minute, and can reach up to 12 meters/minute (in non-silty soil). The construction speed is much faster than other pile driving machinery, and the efficiency is 40%-100% higher than that of pneumatic hammers and diesel hammers.

2. Wide Range of Applications

Except for rock, high-frequency hydraulic pile drivers are suitable for construction in almost any harsh geological conditions, and can easily penetrate layers of pebbles, sand, and other geological formations.

3. Multiple Functions

In addition to constructing various types of load-bearing piles, high-frequency hydraulic pile drivers can also be used for special construction projects such as building thin-walled anti-seepage walls, deep compaction treatment, and ground compaction treatment.

4. Environmentally Friendly

The high-frequency hydraulic pile driver features low vibration and noise during operation, and is equipped with a noise-reducing power box, fully meeting environmental protection requirements during construction in urban areas.

5. Wide Range of Applications

Suitable for driving piles of any shape and material, such as sheet piles, concrete pipe piles, etc.; applicable to any soil layer; can be used for pile driving, pile extraction and underwater pile driving; can be used for pile frame operations and suspension operations.

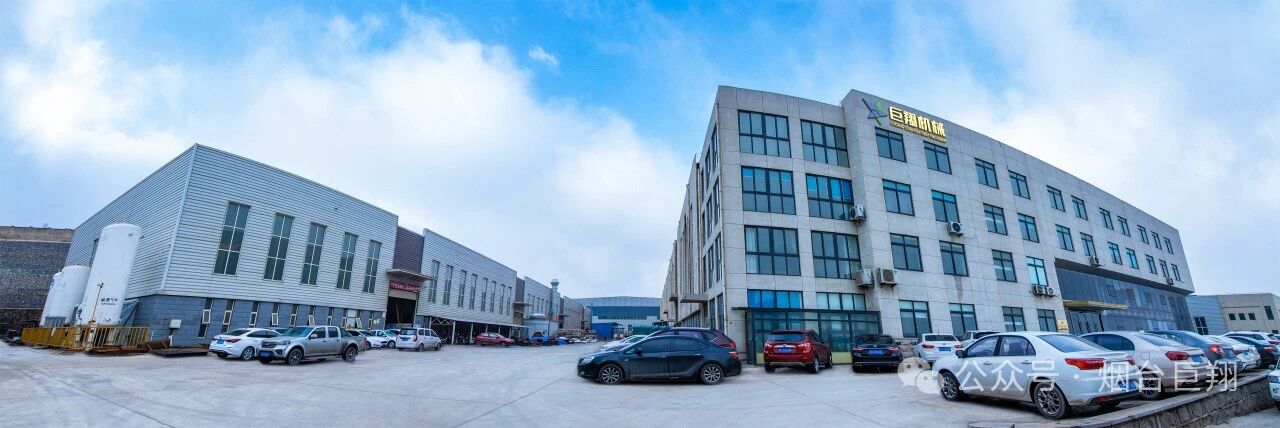

Yantai Juxiang Construction Machinery Co., Ltd. is one of China’s largest manufacturers of excavator attachments. With 18 years of experience in piling machine manufacturing, over 50 R&D engineers, and an annual output of over 2,000 sets of piling equipment, Juxiang maintains close cooperation with leading domestic OEMs such as Sany, XCMG, and Liugong. Juxiang’s piling equipment boasts excellent manufacturing processes and advanced technology, benefiting over twenty countries and selling globally, receiving consistent praise. Juxiang possesses outstanding capabilities in providing customers with systematic and complete engineering equipment and solutions, making it a reliable engineering equipment solutions provider. We welcome inquiries and cooperation from interested parties.
